M7N Rotary Seal : SERIES-AES-019

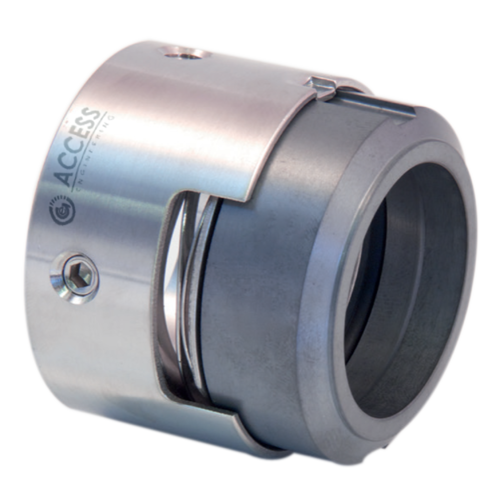

M7N Rotary Seal

Series AES-019 is single coil spring seal developed for light contamination, dirty media and clogging type application. These type also allows it to fit onto a normal shaft without any balancing step. The mechanical drive of this seal is realised by grub screw which lock onto the shaft. The seal has a limited axial length, compact shape which allows easy mounting.

Seal Characteristics

• Single Seal
• Balanced
• Helical Coil spring
• Independent on direction of rotation

Applications

• General Chemicals
• Petrochemicals
• Light Hydrocarbons

Performance Range

• Shaft Diameter : 10...100mm
• Pressure       : 30 bar (max)
• Temperature   : -20...140^OC
• Velocity       : 15 m/sec

Materials

• Seal Faces : Carbon, SiC, Tung. Carbide
• Metal Parts : SS304, SS316, Special Alloy 20
• Bellows : Elastomers, PTFE
